Safety
Dead man's brake as standard
Built to the German Fire Service Association (DFV) recommendation: four braked castors, rated for a 12 % gradient. Full-width operating bar with a minimal travel.

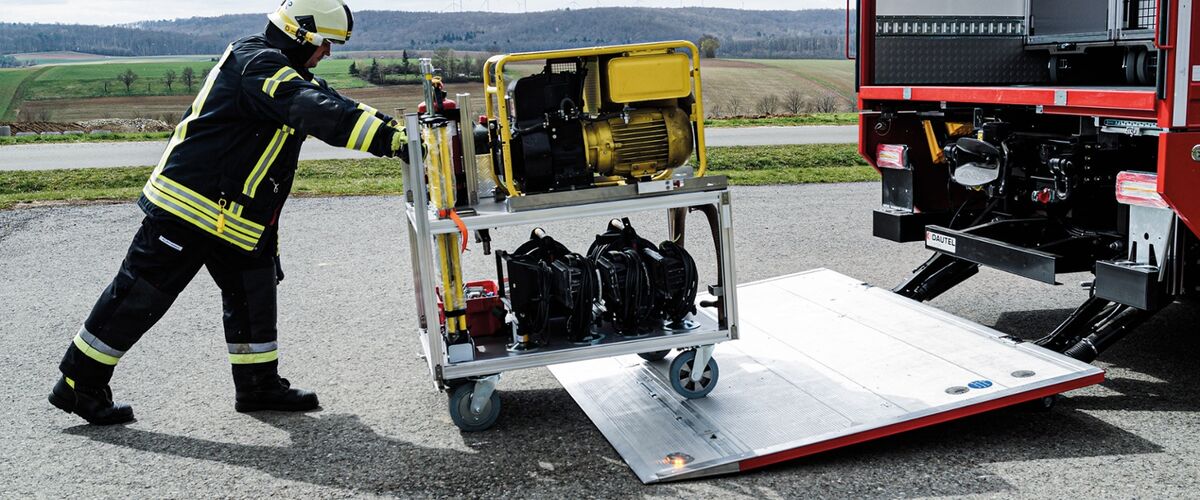

Roll containers
You can't reinvent the wheel. The roll container, however…
Modular, made from high-grade materials – built for years of fire service duty.
Standard
dead man's brake – at no extra cost
TÜV SÜD
tested load securing system
700 kg
gross weight
60 mm
increments for custom sizes
What others call extras, we call standard.
Automatic parking brake. Protected linkage. High-grade materials. Quality down to the last detail – we put our name to it.
Budgets are tight in most municipalities. That is exactly why we build quality rather than cheap: buying well-made equipment saves money, because you can rely on it for years. Our customers tell us so regularly.
Nine details that make the difference
Safety, materials and load securing – every point fitted as standard, not as an option.
Safety
Manoeuvrability
Four swivel castors of 200 mm diameter; the front pair can be locked fore-and-aft with a foot lever.
Safety
Stability
675 mm track width front and rear – easier to run up ramps and less prone to tipping.
Materials
High-grade materials
Purpose-developed stainless steel corner joints give the frame high stability and torsional stiffness.
Materials
Modular and flexible

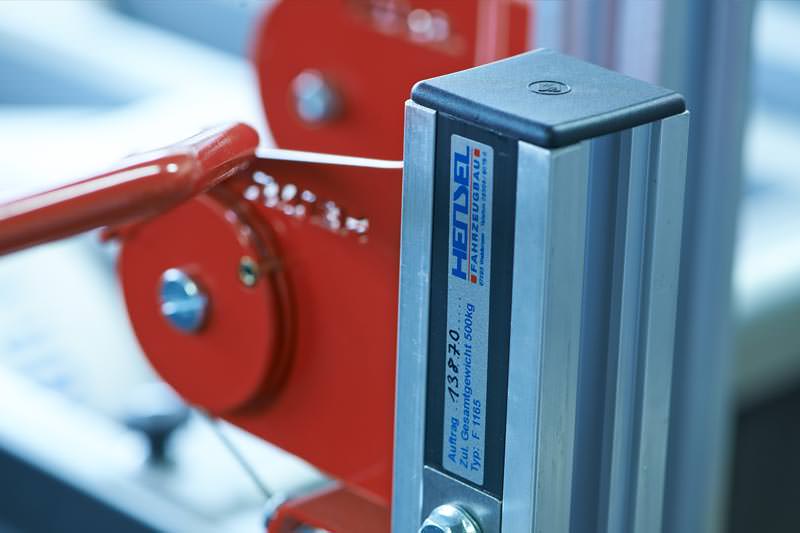

The same infinitely adjustable aluminium system profiles we use in vehicle equipment lockers. Brackets can be swapped between all our products.
Materials
Custom solutions
Our engineers check what is structurally feasible while your enquiry is still being drawn up.
Load securing
Positive-locking holder
The holder clicks into the lashing rail – no pre-tensioning force to worry about, unlike lashing straps. Secures a single container or a whole row.
Load securing
Tested by TÜV SÜD
Secured at the side wall with no protruding parts – the centre aisle stays usable at full width. Can be operated wearing gloves.
Optional
Forklift handling
Pockets make it easier to engage the forks and act as a tipping guard – the load stays balanced.
Technical data
- External dimensions* (L×W)
- 1,200 × 800 mm
- Castor diameter
- 200 mm
- Load capacity per castor
- 350 kg
- Permissible gross weight
- 700 kg
- Unladen weight
- from 55 kg
- Loading height
- 280 mm
*Custom sizes available in 60 mm increments.
